Control Room Technical Specification

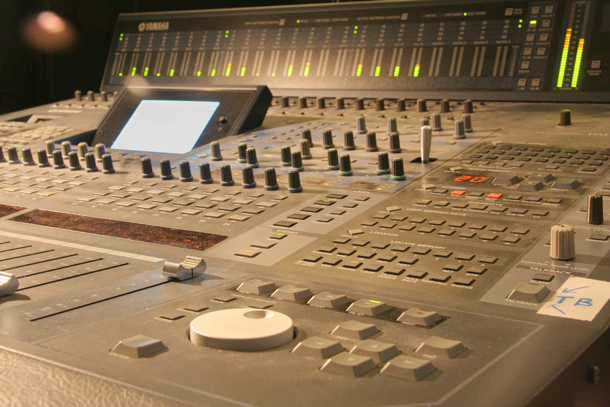

   Sound Desk:

Yamaha DM 2000 Mixer with Compressor/Limiters on every
channel and total recall, motorised faders & eight stereo digital effects.





   Monitoring:

Main:    PMC IB1S Transmission Line with Bryston 800watt Amplifier



Near Field:  HHB Circle 5 Active (180watt) or PMC TB2S (200watt)





   Effects:

T.C. Electronic Intonator for re-tuning vocals



1 x Lexicon MX400 Analogue Reverb



2 x Lexicon MX300 Analogue Reverbs









   Recorders:

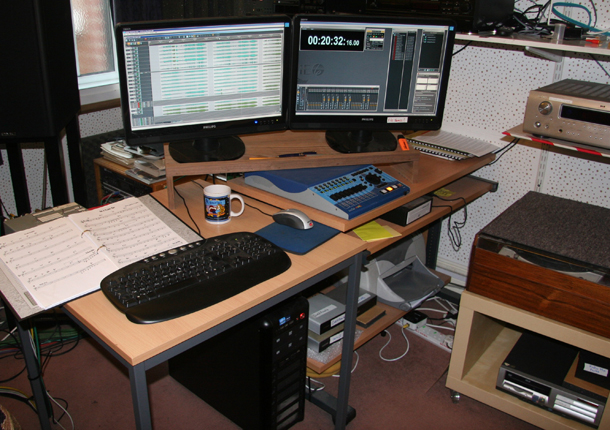

Sadie Digital Recorder/Editor/Mastering version 6.18 with 6Tb storage with Mirroring on internal Hard Drives, plus Archive/Backup on External Drives. Also incorporating Izotope RX7 Audio Processing including mastering, Reverb, De-essing and Sound Restoration (de-click, de-hiss, de-hum, de-crackle).

(see Hints & Tips para 16 for details of hire facility).



Sony PCM-R500 Digital Audio Tape Machine (DAT)





   Microphones:

See separate microphone page for more detail.



Condenser:   AKG, Beyer, DPA, Calrec, Neumann, Rode



Dynamic:   AKG, Beyer, Coles, Shure

Headphones:

The existing Headphone System on the Studio Floor for Musicians to monitor their choice of the mix they prefer has been in use since 2002 and still works well, but current technology suggests the use of Bluetooth and other facilities on a Studio Floor Mixer should be available.

The new units are made by Citronic, the CSD-8 Mixer with built-in Bluetooth Receiver and DSP Effects.

Studio Technical Specification

See also Studio Floor Plan




Studio Measurements: 8 by 4 metres.



Steinway Model 'B' grand piano. (6ft 11ins.)



Three isolation rooms.



Acoustic Screens for further separation.



Full Stereo Headphone monitoring with individual 16 channel mixers.
Eight different kinds of professional headphones to suit all requirements.
Please note that in-ear headphones have to be purchased for hygienic reasons.

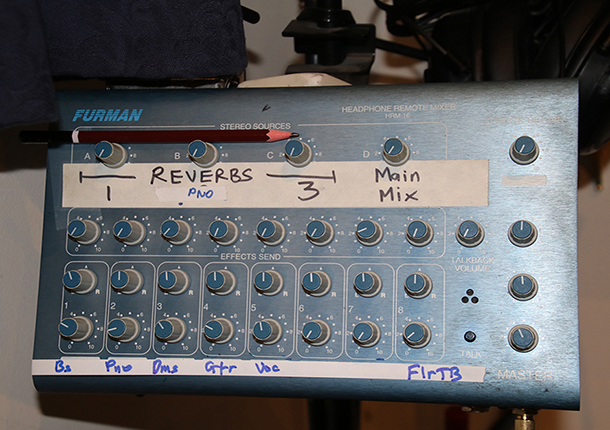

Recording Studio Headphone Mixer Old

Original Studio Floor Furman Mixer

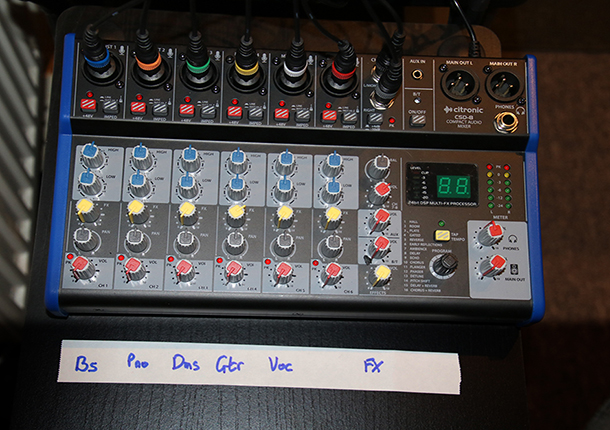

Recording Studio Headphone Mixer New

New Studio Floor Citronic Mixer


The Studio is no longer registered for VAT
